Bolivia
Caballo Blanco Group of Mines
Producing
The Caballo Blanco Group of Mines was acquired by Santacruz Silver in 2022 and is a wholly owned silver-zinc-lead mining complex operated near Potosí, Bolivia. The current operation consists of the Tres Amigos, Esperanza and Colquechaquita underground mines, supported by the centrally located Don Diego Process Plant, and has more than 20 years of continuous operating history. The mines exploit the same polymetallic mineralized trend, allowing for operational synergies through shared infrastructure and centralized processing.
Caballo Blanco utilizes conventional underground mining methods, including shrinkage stoping, cut-and-fill, and sublevel stoping. The Don Diego milling facility has a total milling capacity of approximately 1,300 tonnes per day and produces separate zinc and lead concentrates through conventional crushing, grinding, and flotation circuits. Average 2025 operating head grades were approximately 170 g/t silver, 7.28% zinc, and 1.34% lead.
16.1 kt Zn
MINERALS RESERVES
94.9 Kt Zn
INDICATED RESOURCES
87.6 Kt Zn
294.4 Kt Zn

The Caballo Blanco project consists of two separate mines and one process plant operating as one to produce Zinc and Lead concentrates. An Important part of the supporting infrastructure includes 2 off-site power plants that produce supplemental electric power to the mines. The mines are relatively close together and located as follows:
The Tres Amigos Mines is located 31 km southeast of the city of Potosi, in the Canton Concepcion of the first section of the Tomas Frias Province of the Department of Potosi, at an average elevation of 4,536 masl, at UTM coordinates WGS-84: 218764E and 7814967N.

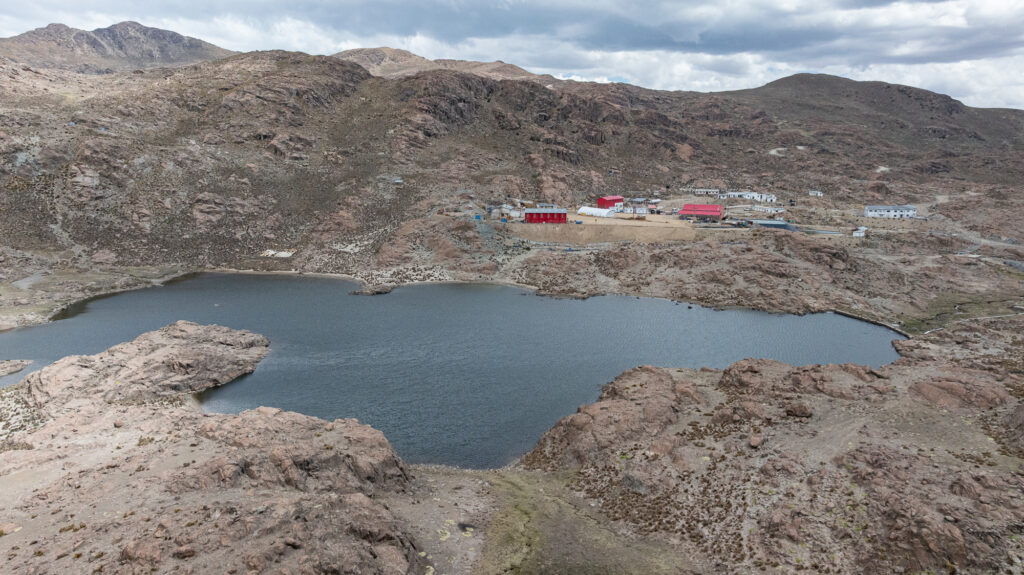

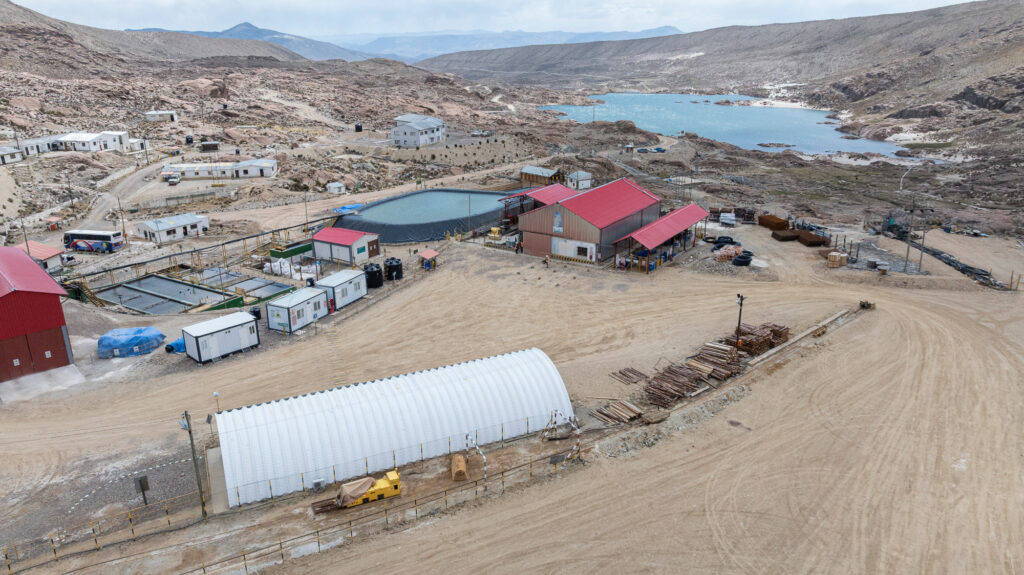

Coquechaquita Mine is located 30 km southeast of the city of Potosi, in the Canton Concepcion of the first section of the Tomas Frias Province of the Department of Potosi, at an average elevation of 4,520 masl, at UTM coordinates WGS-84: 219915E and 7819380N.

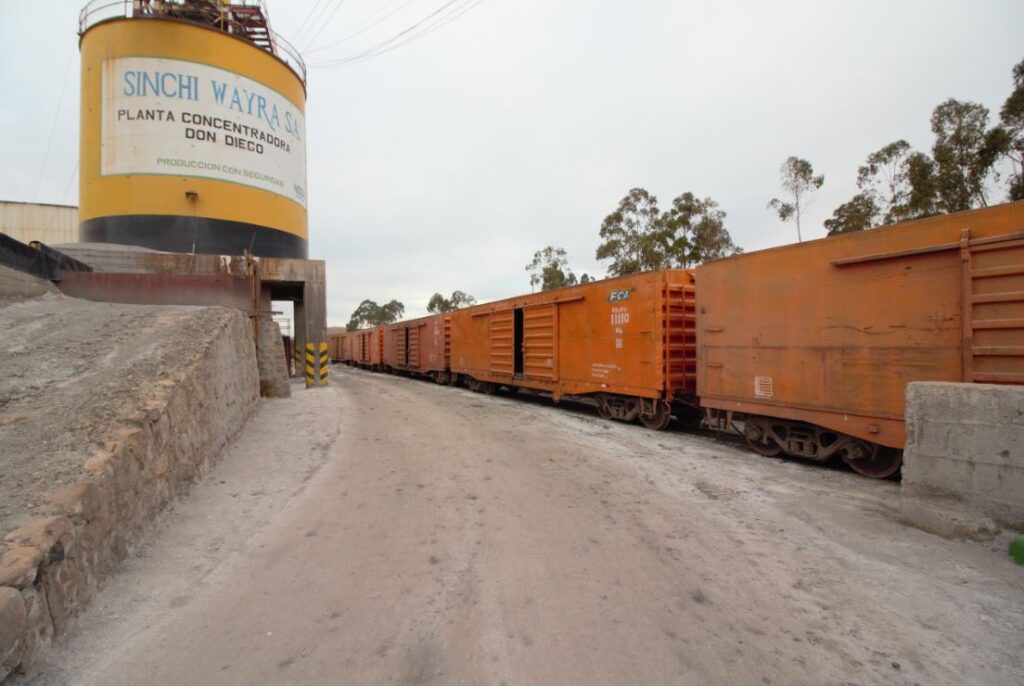

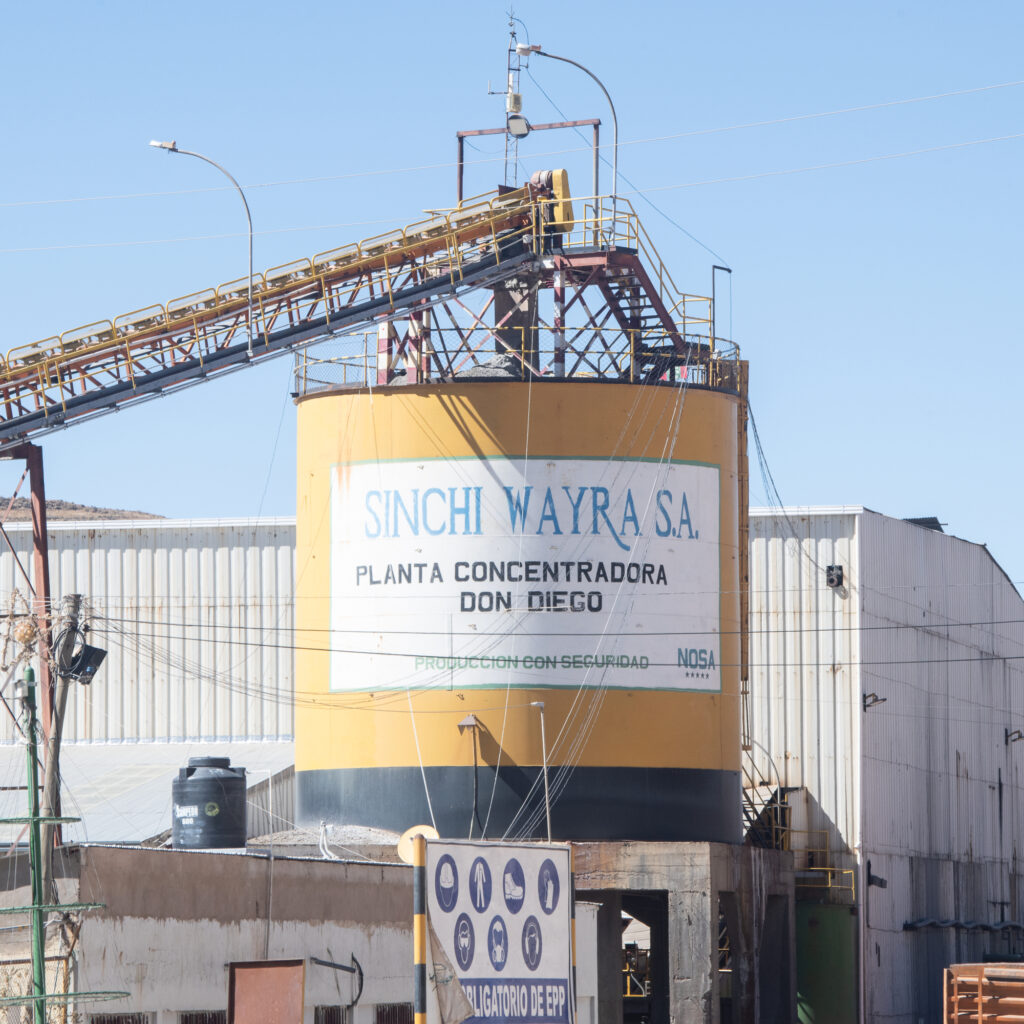

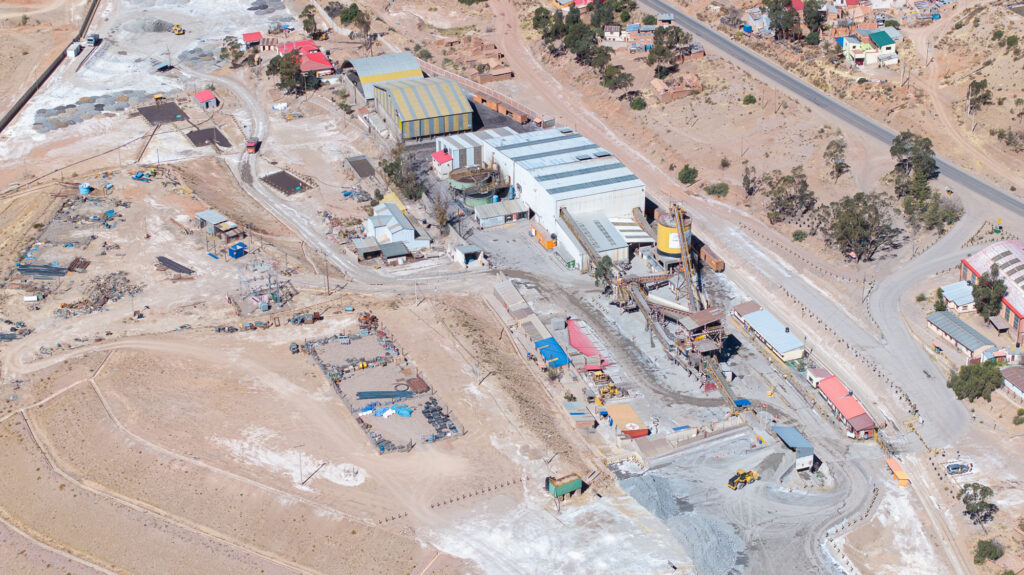

The Don Diego Process plant is located about 23 km Northeast of the city of Potosi, in the Don Diego Canton, Municipality of Chaqui, Cornelio Saavedra Province, of the Department of Potosi. At an elevation of 3,550 masl at UTM coordinates WGS-84: 228933E and 7841150N.
There is a 60 km drive from the mines to the Don Diego Processing plant.
Colquechaquita mine has been in production since 1991 using tracked development and conventional shrinkage and cut and fill stoping methods. The mine produces about 230 t of mineralized material per day. The transition to mechanized mining is in process but still in the early stages. Much production continues to be generated from conventional methods. The southern portion of the mine is moving to trackless development. However, equipment brought into the mine must be disassembled and moved in the shaft which is time consuming and labor intensive.

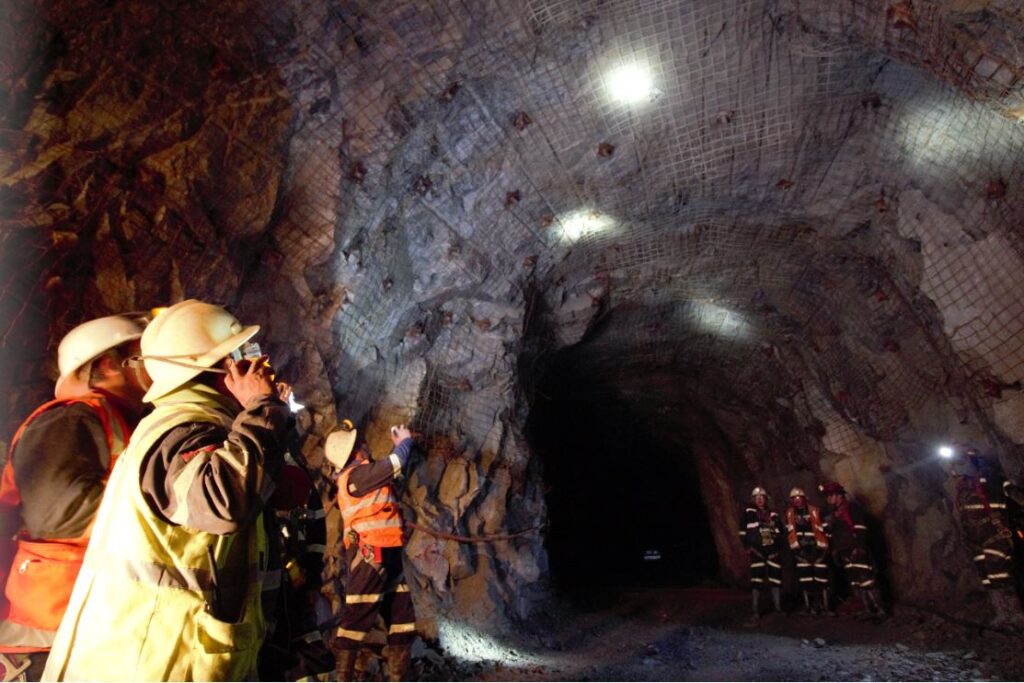

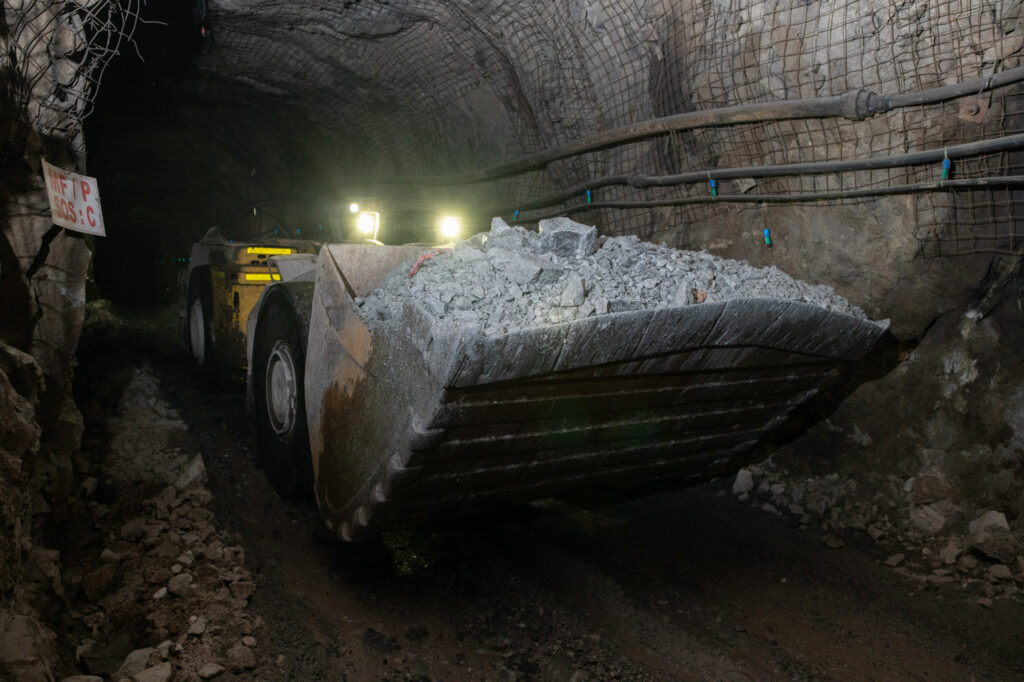

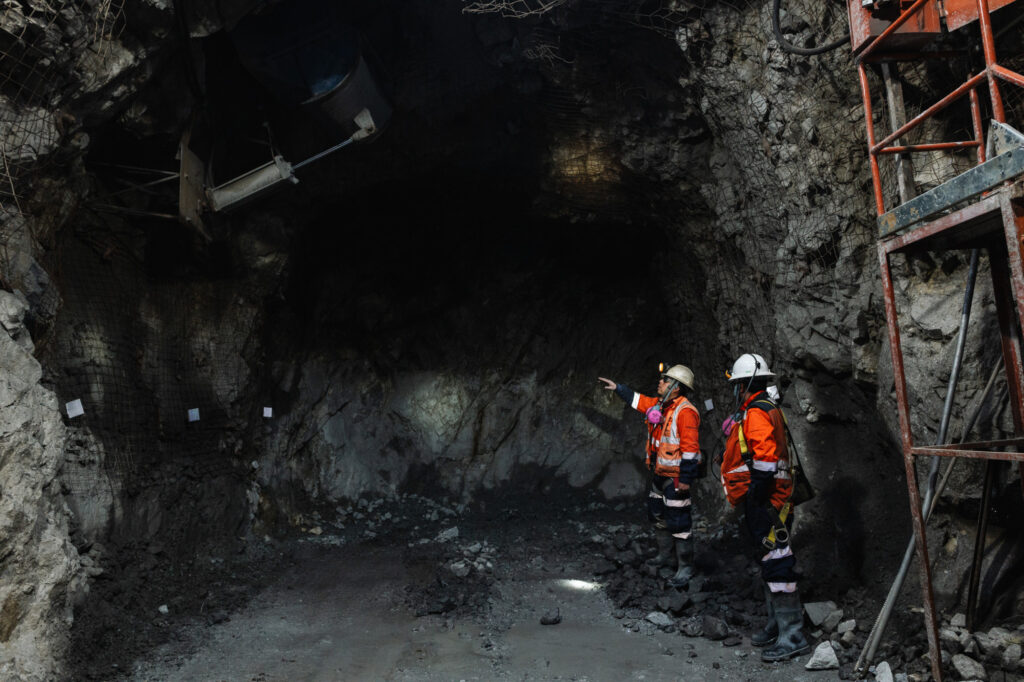

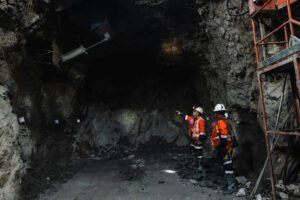

Tres Amigos remains a conventional tracked mine using mostly a modified shrinkage stoping method. The mineralized zones are narrow and high-grade making them well suited to these more selective stoping methods. The operation incorporates higher productivity methods where advantageous, such as auxiliary development and ramps driven with trackless equipment.

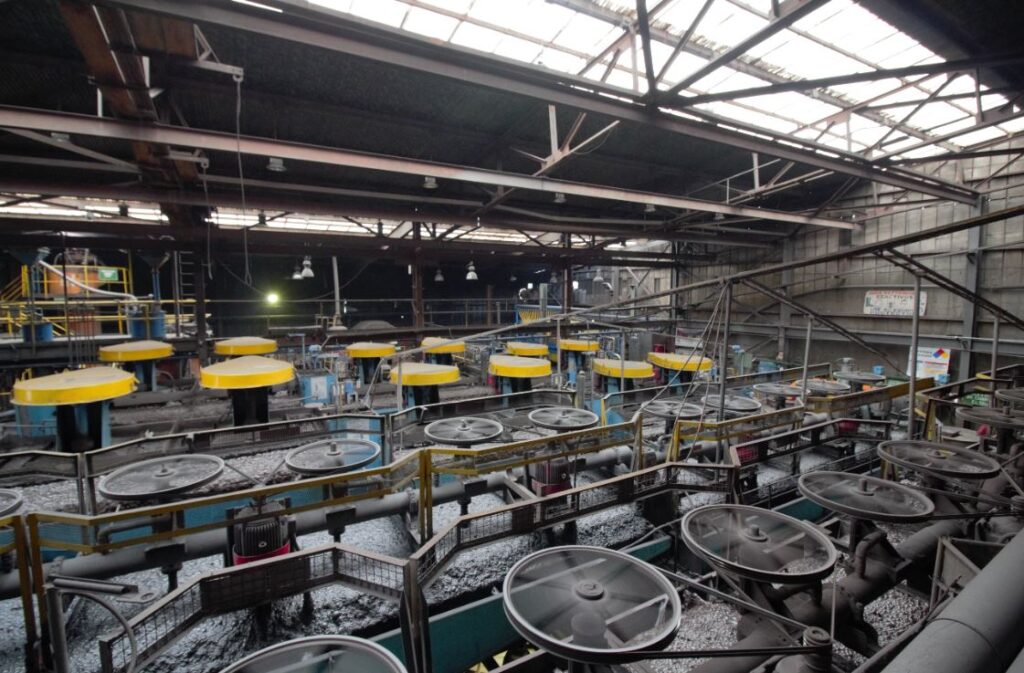

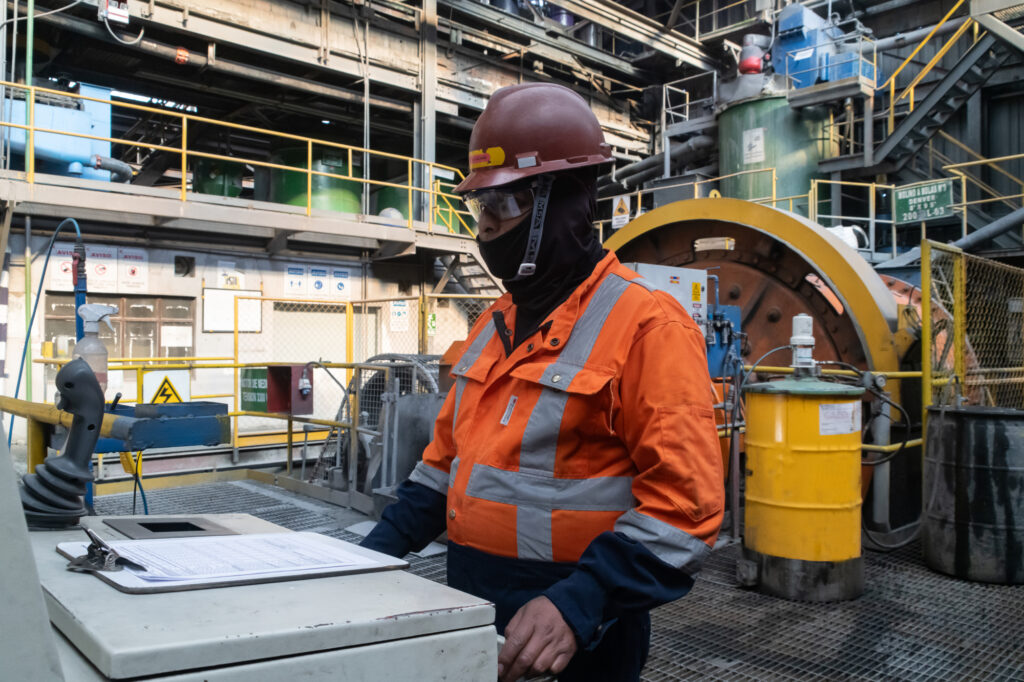

The processing plant at the Don Diego accepts feed from the Cabello Blanco deposit as well as toll feed from artisanal miners. The Don Diego process uses sequential flotation to produce 2 concentrates: lead and zinc. The mill uses a crushing, grinding, and flotation flowsheet to recover a lead concentrate and a zinc concentrate.
The Caballo Blanco district is located in the central block of the Cordillera del Este, in a sequence of Ordovician-Silurian sediments. Mineral deposits occur as structurally controlled, polymetallic, veins oriented NS, NNE-SSW and NNW-SSE, located in welded tuffs of the Kari Kari complex.
Main mineral species are marmatite, sphalerite, galena, and jamesonite, with lesser chalcopyrite and siderite. Vein thickness is typically 0.5-1.7M.
| Grade | Contained Metal | ||||||
| Tonnes (kt) |
Ag (g/t) |
Zn (%) |
Pb (%) |
Ag (koz) |
Zn (kt) |
Pb (kt) |
|
| Measured Mineral Resources | 726 | 321 | 15.96 | 3.03 | 7,481 | 115.8 | 22.0 |
| Indicated Mineral Resources | 502 | 269 | 14.32 | 2.86 | 4,343 | 71.8 | 14.3 |
| Measured & Indicated Mineral Resources | 1,227 | 300 | 15.29 | 2.96 | 11,824 | 187.6 | 36.4 |
| Inferred Mineral Resources | 2,217 | 199 | 13.28 | 2.12 | 14,183 | 294.4 | 47.1 |
| Proven Mineral Reserves | 569 | 217 | 9.90 | 1.85 | 3,965 | 56.3 | 10.5 |
| Probable Mineral Reserves | 465 | 165 | 8.30 | 1.96 | 2,463 | 38.6 | 9.1 |
| Proven & Probable Mineral Reserves | 1,034 | 193 | 9.18 | 1.90 | 6,428 | 94.9 | 19.6 |
Notes:
- The Caballo Blanco Group of Mines Mineral Resource and Mineral Reserve estimates include the Colquechaquita, Tres Amigos and Reserva mines. Beginning in 2025, the Reserva mine was reallocated to the San Lucas business unit and is no longer part of the current Caballo Blanco operating complex.
- The Mineral Resource estimate was prepared using a 10.0% zinc equivalent cut-off grade. Cut-off grades were derived from $25.20/oz silver, $1.38/lb zinc and $1.20/lb lead; and process recoveries of 92.1% for zinc, 77.2% for lead and 90.8% for silver.
- The Mineral Reserve estimate was prepared using a 11.9% zinc equivalent cut-off grade, using the formula ZnEQV = Zn% + 1.22 x Pb% + 0.051 x Ag (g/t). This cut-off grade was based on current smelter agreements and metal prices of $21.00/oz silver, $1.15/lb zinc and $1.00/lb lead, total OPEX costs of $106.94/t based on 2022 actual costs plus capital costs of $42.33/t, with process recoveries of 92.1% for zinc, 77.2% for lead, and 90.8% for silver.
- The effective date of the Mineral Resource and Reserve estimates at the Bolivian Producing Mines is January 1, 2023. Production data for the calendar year 2023 has been included in Section 24 of the various NI 43-101 compliant technical reports for the Bolivian Producing Mines and shows the depletion and typical replenishment of resources and reserves over a calendar year
The Caballo Blanco Group of Mines 43-101 Technical Report includes Mineral Resource and Mineral Reserve estimates for the Colquechaquita, Tres Amigos and Reserva mines. The Proven & Probable Mineral Reserves, Measured & Indicated Mineral Resources, and Inferred Mineral Resources stated above include the Reserva mine. Beginning in 2025, Reserva was reallocated to the San Lucas business unit and is no longer part of the current Caballo Blanco operating complex.
